This overview introduces the FermAxiom Basic Yeast Cell Counting Calculator and positions it within a two-tier calculator family, alongside the Advanced version now available to our industrial and research partners.
The web version of the Microscopic Yeast Cell Counting Calculator provided below is the entry point of the FermAxiom yeast biomass quantification calculator family and is intended both as a teaching tool and as a working bench instrument: a transparent, self-contained implementation of the hemocytometer-based microscopic cell counting procedure routinely used in fuel ethanol plants, breweries, distilleries, and yeast propagation laboratories to enumerate viable and non-viable cells, distinguish budding from non-budding populations, and report viability and budding indices alongside total cell concentration. Built directly on the Neubauer-improved hemocytometer ruling conventions and the standard Methylene Blue viability stain chemistry, it lets the user step through a full cell-count measurement — from sample dilution through field enumeration to the final reported indices — with a minimum of moving parts, so the underlying counting principles remain foreground.

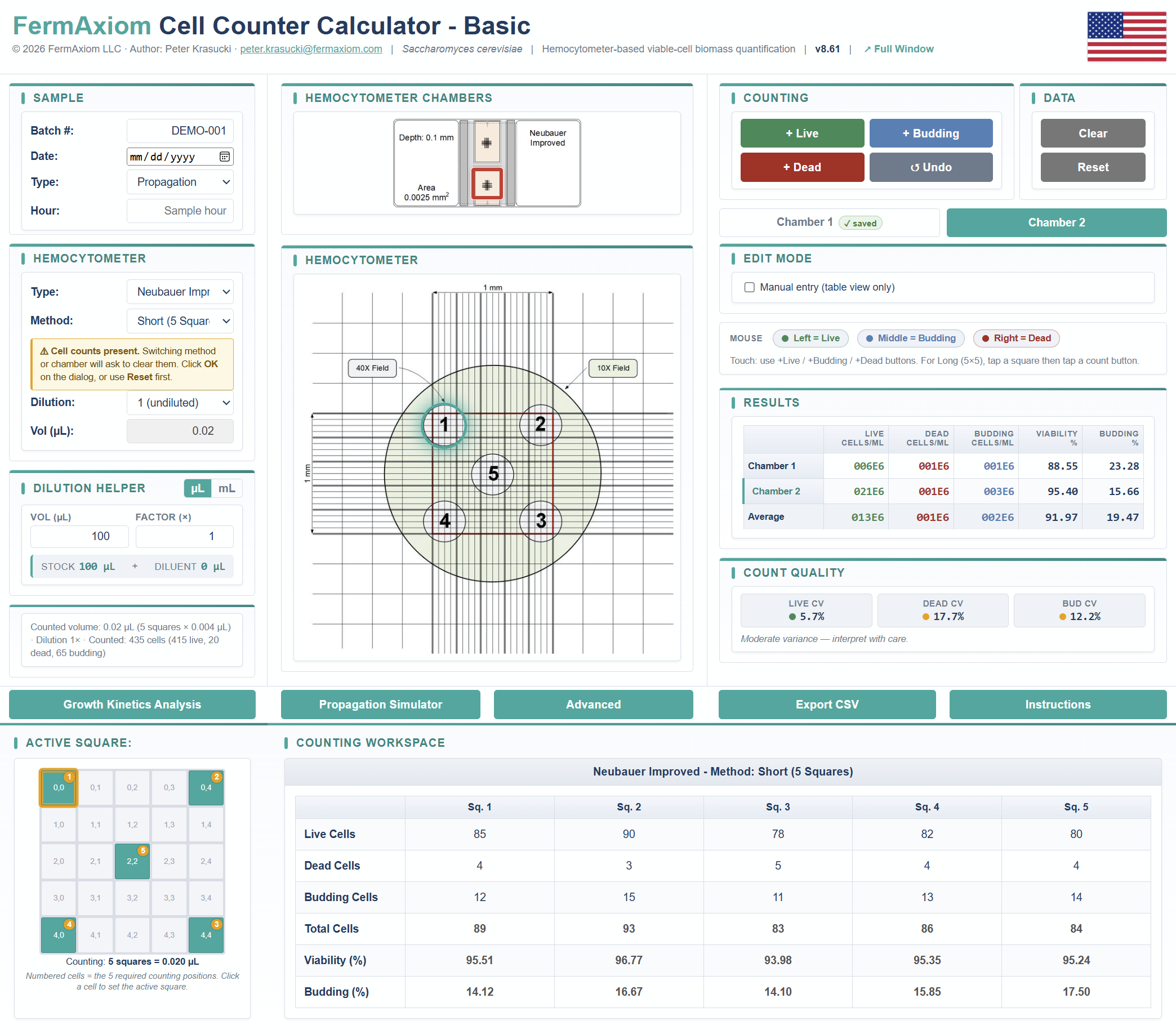

The Basic version of the Yeast Cell Counting Calculator takes the cell counts manually tallied by the operator at the microscope and converts them into the working concentrations and physiological indices needed to characterize the propagation or fermentation sample. The user enters the sample batch identifier, sample type, sample hour, hemocytometer type (Neubauer improved or single-use), dilution factor (10, 20, 50, 100, 200, or 1000), counting volume in microliters, and the selected counting area, then records the per-square cell counts in the five categories produced by the Methylene Blue stain: live (colorless) cells, dead (solid blue) cells, live mother cells with live buds, live mother cells with dead buds, and dead mother cells with dead buds. Two governing constants drive the calculation: the hemocytometer chamber volume factor (10,000 with 0.1 mm chamber depth and the standard five-of-twenty-five inner-square sampling) and the operator-set dilution factor that scales the field counts back to the original sample concentration. The calculator returns the total cell concentration in cells × 106/mL, the percent viability (live cells over total cells), and the percent budding (budding cells over live cells), with one-click reset to standard counting conventions and an Export Data action for downstream record-keeping. Inputs are bounds-checked, results auto-recalculate on every change, and a budding cell counts as two cells whenever the bud reaches at least 50% of the mother cell size, in line with industry counting practice.
A step-by-step tutorial accompanies the Original Calculator while in-depth instructions are built in Basic calculator and walks through each input, each cell category, and the microscopy reasoning behind the Neubauer ruling, the five-square central sampling, and the Methylene Blue redox staining mechanism. The tutorial is the recommended starting point for users new to microscopic yeast cell counting: it explains why only five of the twenty-five inner squares are sampled and how the volume factor of 10,000 emerges from the chamber geometry, why duplicate-chamber counts must agree within 15% before the result is accepted, and why Methylene Blue penetrates dead cells but is enzymatically reduced to its colorless form by the active reductases of viable cells. Together, the calculator and the tutorial are intended to give students, plant operators, brewers, distillers, and process engineers a working command of the underlying counting procedure before they advance to the Advanced tier. The Basic tier is offered freely to support education and training across the industry.
An Advanced version of the Yeast Cell Counting Calculator extends the same hemocytometer-based microscopic counting procedure with image-based workflow and assisted cell detection. Where the Basic tier relies on the human operator at the microscope to tally cells in each category by eye, the Advanced tier moves the counting workflow onto the captured hemocytometer micrograph: the operator loads the image, the calculator automatically detects the chamber grid and overlays it on the image, and cell counting proceeds either by direct click-to-classify on the image or by reviewing and confirming proposals generated by an embedded classical-computer-vision pipeline (background subtraction, adaptive thresholding, watershed segmentation, and size/shape gating tuned for yeast at typical microscopy magnifications). Every click is recorded with its image coordinates, producing a full audit trail that allows any count to be reproduced and inspected after the fact, and multi-field-of-view sessions aggregate cell counts across many captured images for tighter statistical confidence on the reported viability and budding indices. Both Improved Neubauer and Single-Use disposable hemocytometers are supported, with the appropriate chamber geometry and counting volume applied automatically when the device and method are selected. The counting conventions, dilution scaling, and reported outputs remain identical to the Basic tier, so results from the two calculators are directly comparable across the same sample. The Advanced version is available to our industrial and research partners.
